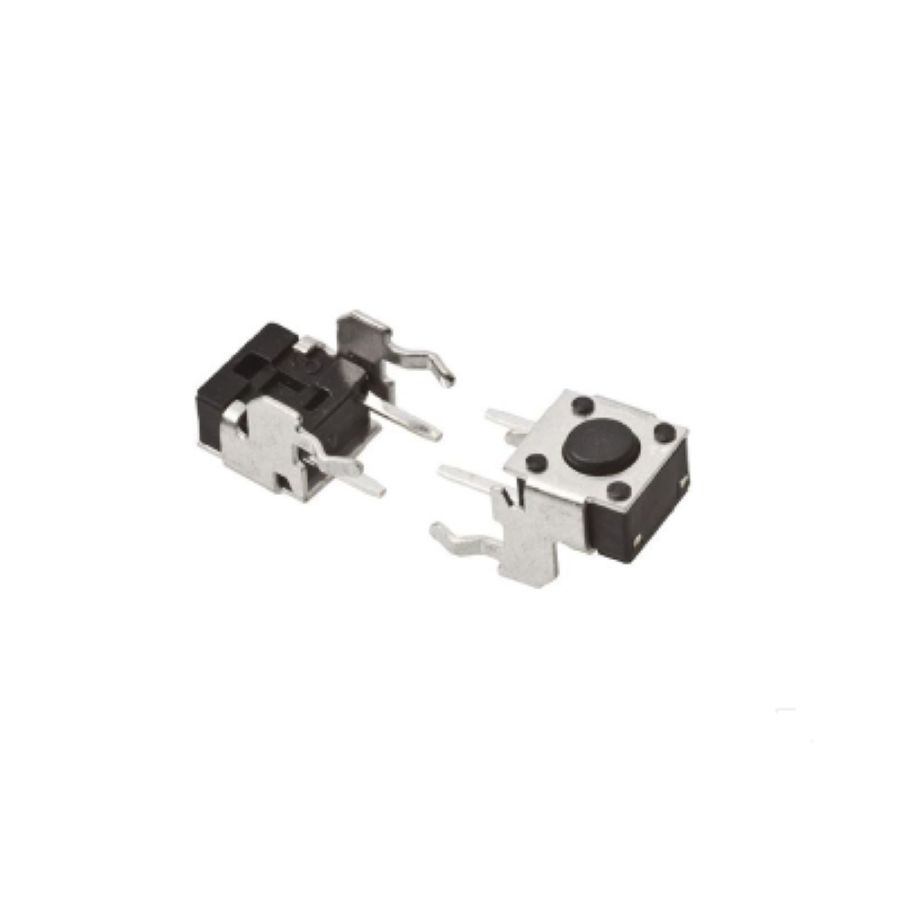

1825027-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1825027-2
Datasheet:
Description:
Pushbutton Switches Through Hole SPST-NO Off-Mom Standard Non-Illuminated Switch Current Rating:50 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 7.11 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 24 V |
| Height | 7.31 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 7.16 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper |
| Type | Switch |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| ELV | Compliant |
| Actuator Length | 558.8 µm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Housing Material | Nylon |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Switch Travel | 250 µm |
| Actuator Material | PBT |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
| Life (Cycles) | 100 kCycles |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
Stock: 1617
Distributors
pcbx
pcbxUnit Price$0.13764
Ext.Price$0.13764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13764 | $0.13764 |
| 10 | $0.10943 | $1.09430 |
| 50 | $0.09959 | $4.97950 |
| 100 | $0.09063 | $9.06300 |
| 500 | $0.08515 | $42.57500 |
| 1000 | $0.07318 | $73.18000 |
| 3000 | $0.07132 | $213.96000 |
| 5000 | $0.06951 | $347.55000 |
